Matching Corridor Region Parameters...

At times, you may want to match the Properties of one Corridor Region with another. This may include Assembly, Target or Frequency information. This can be particularly useful if you have lost the information and don't want to spend time manually selecting all of your targets again...!

The can be done using the 'Match Parameters' command...

- Select the Corridor that you wish to edit
- You can then either 'Right-Click' and go to Modify Region>Match Parameters or select 'Match Parameters'
  on the contextual Corridor Ribbon
- Then follow the Command Line Prompts...
- Select the Source Region, then select the Destination Region

Assembly, Target and Frequency Parameters of the Source Region will be applied to the Destination Region.

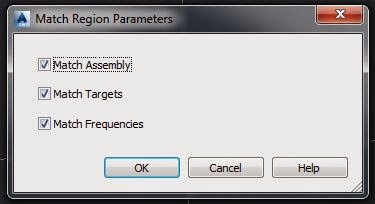

If you wish to control which Corridor Region Parameters are applied you can access the Settings which will bring up the following dialog box. To access the Settings type 'S' in the Command Line after selecting the Source Region.


Note: By default, all three Parameters are transferred (Assembly, Target and Frequency).
